How To Make Your Own Bowsaw

_DSC7282

A folding saw is an essential item of equipment when travelling in woodland areas, but sometimes something a little larger can ease the workload and open up possibilities. Carrying a buck saw or pack saw is one way to address this, but if you want to travel a little lighter it is possible to carry just the blade and improvise a frame from the woodland; one of the many skills taught on the Woodlore Camp Craft course. The bending of the wood is usually facilitated by heating, but this is not always necessary as you will see. For this guide, we used a 24″ Bahco Bowsaw Blade.

Method

  1. Wood selection is, as always, important. It needs to be straight and as knot-free as possible. For this saw we used a 10’ ash sapling, but there are many other suitable species including hazel, willow and sweet chestnut. The section that you choose should be at least a couple of inches thick in the centre._DSC7215

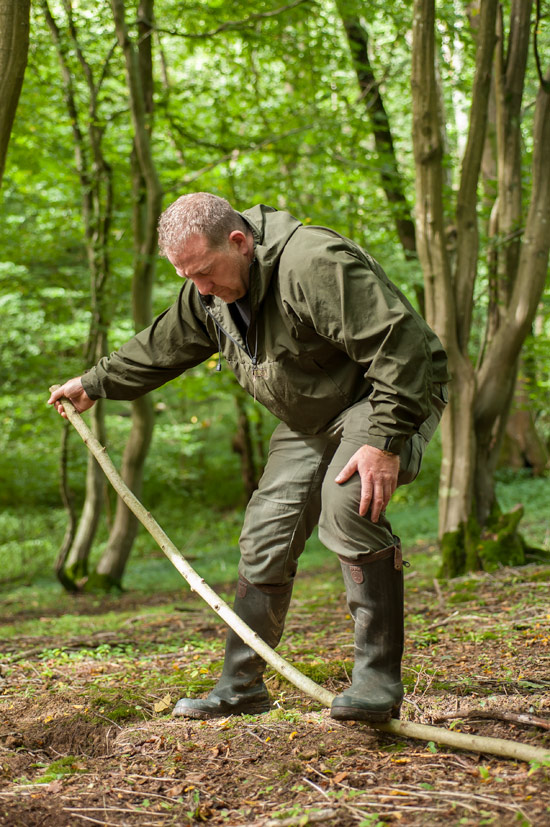

  2. Place the sapling on the ground and, using your foot to hold the centre, start to bend one of the ends upwards. As we are not using heat to loosen up the lignin (the natural structural material which lends rigidity to the wood) this process needs to be slow. Have patience and don’t rush.
    _DSC7219_DSC7221
  3. Turn around and start the bending process from the other end, working until the wood feels as though it is becoming more pliable.
    _DSC7223
  4. Once the bend is established, both ends can be pulled slowly and gently upwards. Moving your feet from one end to the other and rocking the wood as it bends helps to create a more even curve._DSC7228

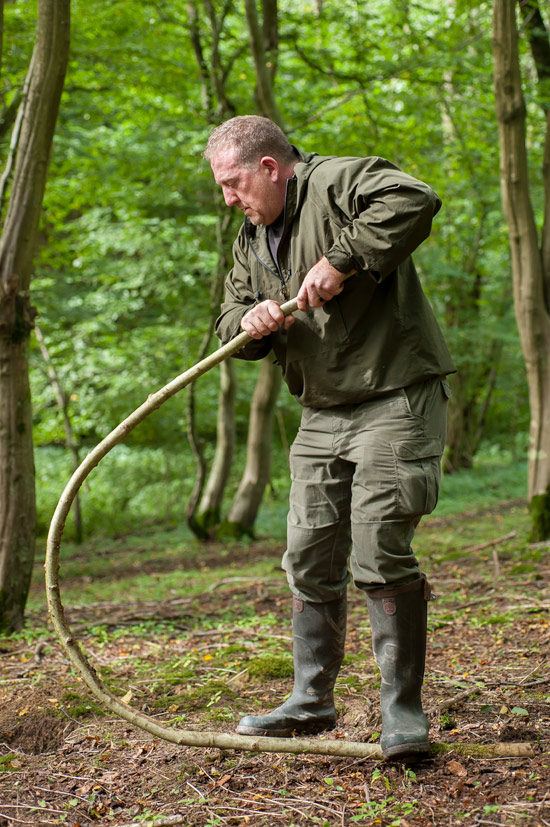

  5. Moving the sapling onto its side can give more control during the later stages of the process.
    _DSC7231_DSC7234

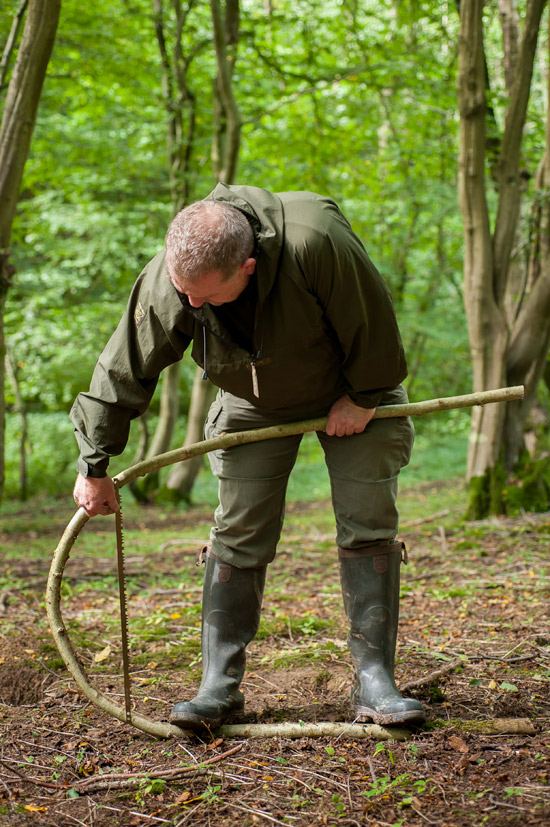

  6. Keep measuring the blade against the curve so that you know when you have achieved the correct diameter._DSC7235

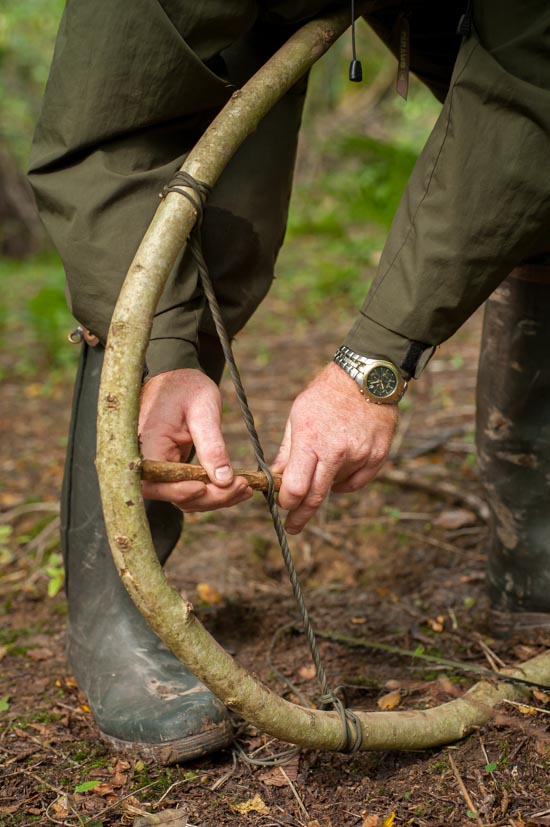

  7. Once the correct diameter has been achieved, take a length of cord and tie it several times across the diameter of the arc. Put a windlass between the lengths of cord and turn it to bring the curve into its final position. The windlass may then be locked off by allowing it to rest against the top of the frame.
    _DSC7237_DSC7238

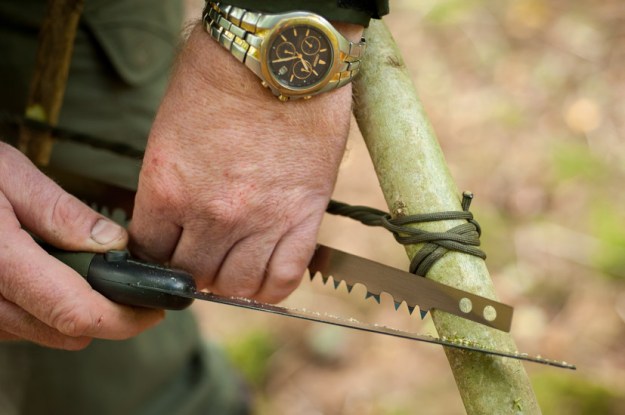

  8. Use the blade to measure the correct position, then mark and remove the excess ends of the wood._DSC7243

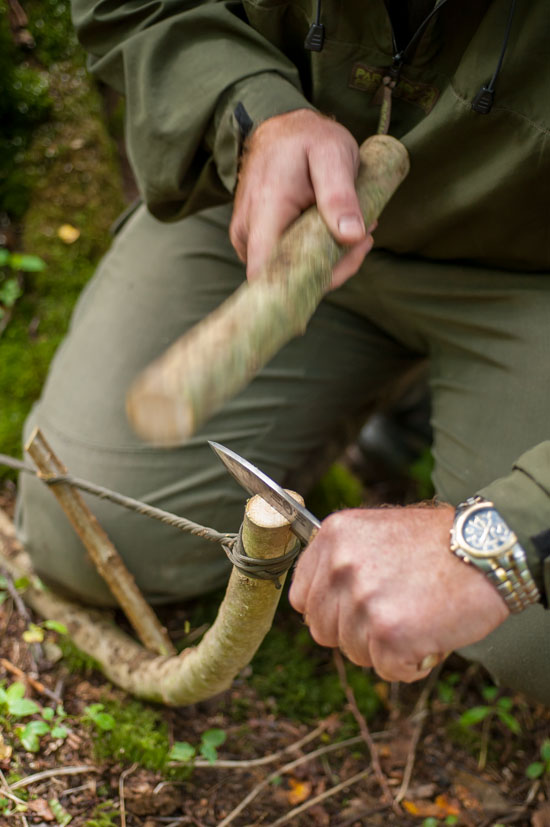

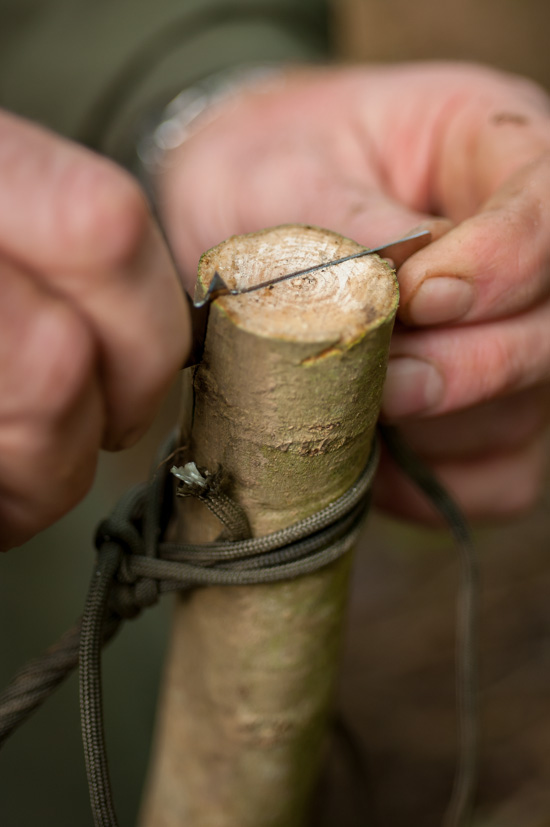

  9. Use a knife to split the ends of the saw frame, then slot the blade into the splits. This may take a little fiddling to get right, but take your time and mind your fingers on the teeth.
    _DSC7249_DSC7257

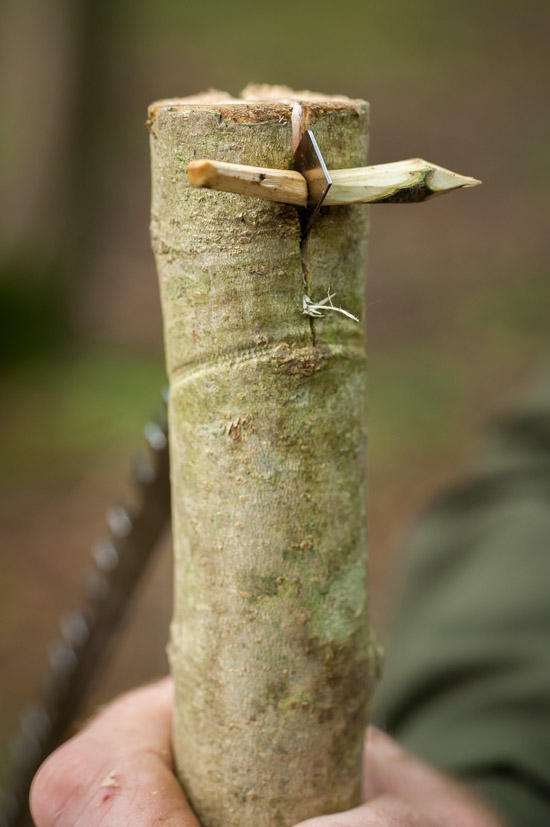

  10. Put a strong peg through the holes in either end of the saw blade and carefully release the windlass, removing the cord as soon as it is loose enough to do so. You can see that the tension in the frame is powerful enough to bend the pegs, so caution is needed. Fencing wire or even a nut and bolt can be used instead if you prefer._DSC7261
  11. The finished bow saw is now ready for use and proved to cut strongly and efficiently.

_DSC7282
